How to Design an Image Loading Library in Android - LRU CACHE

Every Android app needs fast and efficient image loading—whether it’s for a social media feed, an e-commerce catalog, or a news app. We often use libraries like Glide, Picasso, or Coil, but have you ever thought about how they work under the hood?

Imagine you’re asked in a system design interview: (Most Commonly Asked)

💡 “Design an image loading library from scratch.”

Sounds exciting, right? Let’s break it down! 👇

The Problem – Why Do We Need a Custom Image Loader?

Downloading and displaying images might seem simple, but it comes with challenges:

Slow Loading – Downloading large images blocks the UI.

Network Overhead – Fetching the same image multiple times wastes bandwidth.

Memory Issues (OOM Errors) – Unoptimized images kill your app.

Scrolling Lag – If images are not efficiently loaded, RecyclerView stutters.

A well-designed image loading library should solve these problems efficiently.

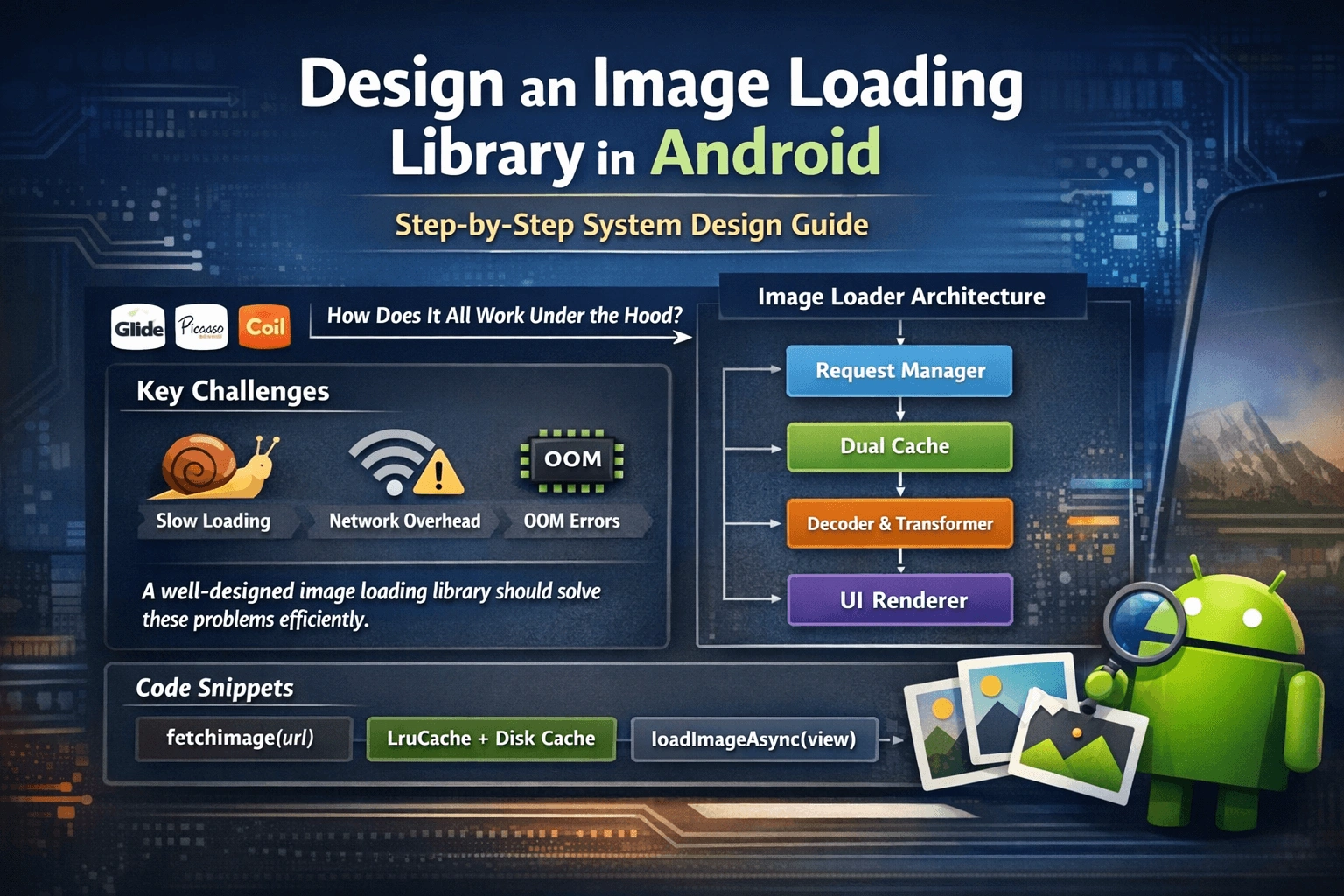

High-Level Architecture of an Image Loader

A modern image loader consists of four major components:

1. Request Manager – Handles API calls and queues requests.

2. Cache Layer – Stores images in memory & disk to avoid re-downloading.

3. Decoding & Transformation – Resizes, crops, or applies filters to images.

4. UI Renderer – Efficiently loads images into an ImageView without blocking the UI.

Before moving ahead, kindly join android whatsapp community

https://chat.whatsapp.com/JGIQRz0RRyhIrEe8oNfHYR

Get follow our page TheCodingShef

https://www.linkedin.com/company/thecodingshef/

Let’s build this step by step! 🏗️

📡 Step 1: Image Downloading (Fetcher Layer)

Before caching, we need to download images efficiently.

✅ Use OkHttp for fast & optimized network calls.

✅ Implement request deduplication (Avoid multiple calls for the same URL).

✅ Support timeouts & retries to handle slow networks.

fun fetchImage(url: String): Bitmap? {
    val request = Request.Builder().url(url).build()
    val response = OkHttpClient().newCall(request).execute()
    return BitmapFactory.decodeStream(response.body?.byteStream())
}
codeCopy

Optimization Tip: Support different formats (WebP, PNG, JPEG) to reduce file size.

Step 2: Implementing a Dual Cache System (Memory + Disk)

Caching is the key to speed!

🔹 Memory Cache (RAM) – Fastest access, but limited space.

🔹 Disk Cache (Storage) – Slower but persistent across app restarts.

Memory Cache using LruCache (Least Recently Used Eviction)

val memoryCache = LruCache<String, Bitmap>(cacheSize)

fun getFromMemoryCache(url: String): Bitmap? = memoryCache.get(url)
fun putInMemoryCache(url: String, bitmap: Bitmap) = memoryCache.put(url, bitmap)
codeCopy

Disk Cache using File Storage

fun getFromDiskCache(url: String): Bitmap? {
    val file = File(cacheDir, url.hashCode().toString())
    return if (file.exists()) BitmapFactory.decodeFile(file.path) else null
}

fun putInDiskCache(url: String, bitmap: Bitmap) {
    val file = File(cacheDir, url.hashCode().toString())
    FileOutputStream(file).use { bitmap.compress(Bitmap.CompressFormat.PNG, 100, it) }
}
codeCopy

Optimization Tip: Use LRU eviction to remove the least-used items when memory is full.

Step 3: Image Decoding & Transformation

Images should be optimized for UI.

✅ Resizing – Load only the necessary resolution (avoid full-size images).

✅ Caching Transformed Images – Don’t reprocess the same image repeatedly.

✅ Lazy Loading – Load only when required (use RecyclerView ViewHolders).

fun decodeAndResize(image: Bitmap, width: Int, height: Int): Bitmap {
    return Bitmap.createScaledBitmap(image, width, height, true)
}
codeCopy

Optimization Tip: Store multiple resolutions in cache for different screen sizes.

Step 4: Rendering Efficiently into ImageView

Once we have an image (from cache or network), we bind it to an ImageView without blocking the UI thread.

✅ Use Coroutines or Executors to load images asynchronously.

✅ Prevent UI Flickering by showing placeholders while loading.

✅ Cancel Unused Requests when the user scrolls away (important for RecyclerView).

fun loadImage(url: String, imageView: ImageView) {
    val cachedBitmap = getFromMemoryCache(url) ?: getFromDiskCache(url)

    if (cachedBitmap != null) {
        imageView.setImageBitmap(cachedBitmap)
    } else {
        CoroutineScope(Dispatchers.IO).launch {
            val bitmap = fetchImage(url)
            bitmap?.let {
                putInMemoryCache(url, it)
                putInDiskCache(url, it)
                withContext(Dispatchers.Main) { imageView.setImageBitmap(it) }
            }
        }
    }
}
codeCopy

Optimization Tip: Avoid blocking the UI thread by running operations in the background.

Bonus: Advanced Optimizations

🔹 Preloading & Prefetching – Load images before they are needed.

🔹 Request Deduplication – If the same image is requested multiple times, return the same Future instead of re-downloading.

🔹 Adaptive Caching – Store high-res images for large screens, low-res for small screens.

🔹 Glide-Like API Support – Provide a simple API:

ImageLoader.load(url).placeholder(R.drawable.loading).into(imageView)
codeCopy

🎯 Final Workflow – How It All Comes Together

Step 1: Check if the image exists in memory cache (LruCache).

Step 2: If not found, check disk cache (DiskLruCache).

Step 3: If not cached, fetch from the network (OkHttp).

Step 4: Resize & cache the image in memory & disk for future use.

Step 5: Render the image efficiently in ImageView.

🚀 Final Thoughts – Why Build Your Own Library?

While Glide, Picasso, and Coil do an amazing job, building an image loading library helps you:

✅ Understand how caching & memory management works.

✅ Optimize performance for specific use cases.

✅ Handle custom transformations & rendering.

Wait for next Article where i will explain whole code. How you like this article. Let me know in the comments! 👇
